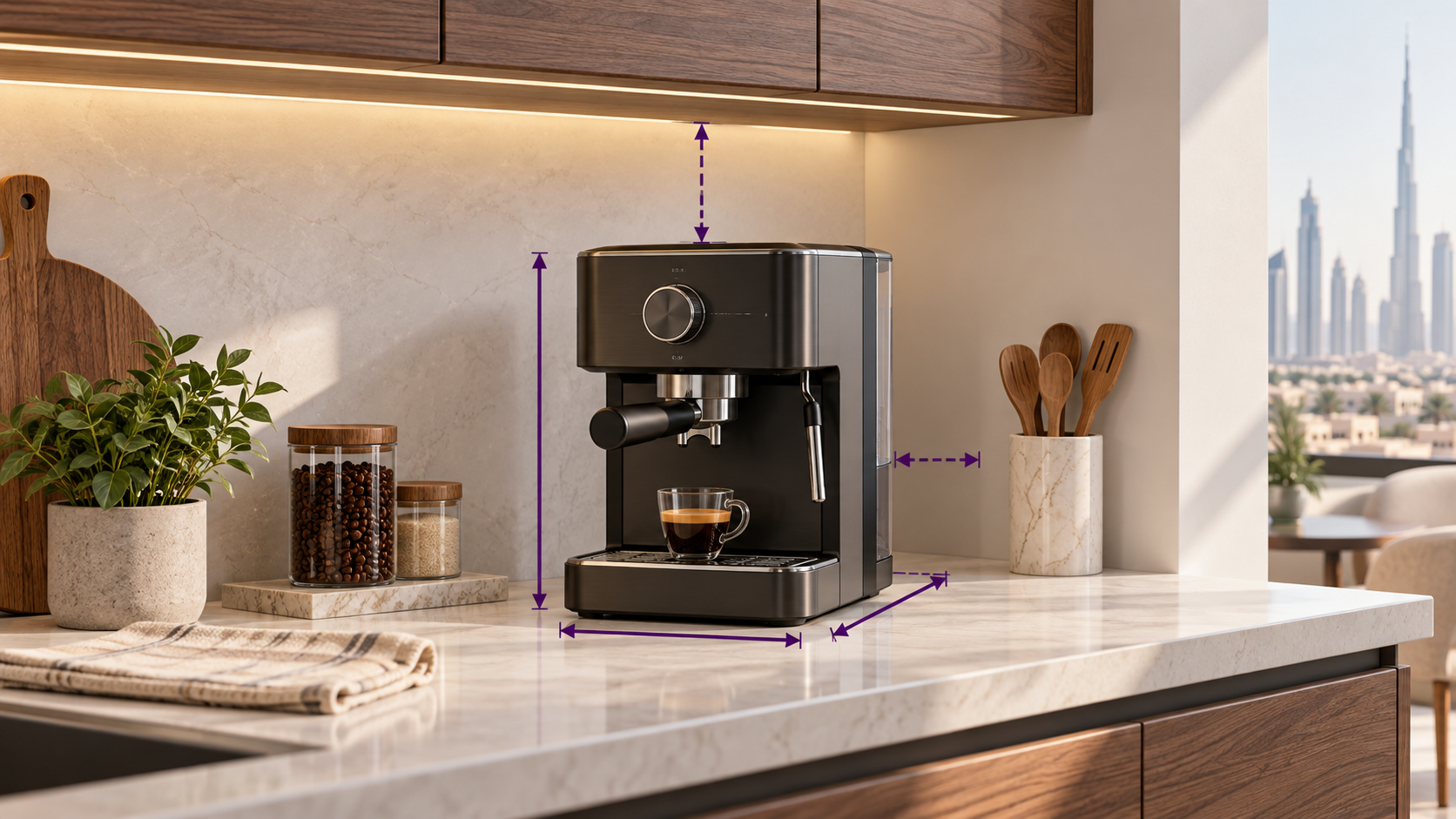

The seven-measurement checklist
- Body width at the widest fixed point.
- Body depth plus cable and rear ventilation clearance.
- Body height plus top-opening hopper, capsule lever or lid.
- Front reach with drip tray, puck bin, jug or portafilter removed.
- Side/rear reach for a removable water tank or service door.
- Milk jug or detachable carafe working space.
- Manufacturer-required clearance from cabinets, walls, heat and water.
Verified examples from the current comparison
| Model | Official dimensions (W × D × H) | Access implication |
|---|---|---|
| Nespresso Essenza Mini C30 | 8.4 × 33 × 20.4cm | Very narrow; still allow top lever/capsule and rear tank access |
| De’Longhi Dedica EC685.M | 14.9 × 33 × 30.5cm | Narrow body; add portafilter swing, steam jug and grinder space |
| De’Longhi Magnifica Evo ECAM292.81.B | 24 × 44 × 36cm | Deep body; add hopper, tank, tray and milk-carafe access |
| Sage Barista Express BES875 | 31.8 × 35.1 × 40.4cm | Integrated grinder reduces separate footprint but needs overhead hopper access |
These dimensions apply only to the named regional models and were verified from official sources. Do not use them for a different suffix or machine in the same family.
Why width alone misleads
A narrow capsule or manual machine can be deep. A narrow portafilter body also needs lateral room to lock the handle and space for a grinder, tamper and milk jug. Measure the assembled coffee station, not only the appliance shell.
Overhead cabinet access
- Bean hoppers usually fill from above and may have a removable lid.
- Capsule levers or heads may rise beyond the listed closed height.
- Top-filled water tanks need room for a jug or removal.
- Cup-warming trays must not be treated as storage that blocks vents.
Depth and front working space
Include the plug and safe cable bend behind the machine, then the fully extended tray, bin or front tank. A portafilter handle projects sideways/front and contains hot grounds after brewing. Do not plan to rotate or drag a hot machine for every refill.
Ventilation, heat and water
Use the exact manual clearance. Keep vents open, avoid direct heat and splashing zones, and place the machine on a stable level surface near a suitable socket. Warm kitchens make bean and milk storage discipline more important, not looser.
Best format for a small UAE kitchen
| Format | Space advantage | Hidden space cost |
|---|---|---|
| Compact capsule | Often narrow and low | Capsule storage and optional frother |
| Slim manual espresso | Narrow appliance body | Grinder, tamper, jug and handle reach |
| Filter | Simple layout | Jug removal and overhead water fill |
| Bean-to-cup | Integrated grinder | Depth, top hopper and internal service access |
Measure before checkout
- Tape the machine rectangle on the counter and mark cabinet height.
- Open nearby drawers, doors and fridge panels to reveal collisions.
- Confirm the socket is reachable without an unsafe adaptor or extension arrangement.
- Leave a dry landing area for hot portafilters, jugs or removable trays.
Power and socket checks are covered in the coffee machine wattage guide.
Final recommendation
Buy only after the operating envelope works: body, access, accessories, cable, ventilation and safe handling. Compactness is the whole station, not the brochure width.
Use these measurements with how to choose a coffee maker, check the footprint trade-offs in the four-format comparison, and compare verified models in Best Coffee Makers in UAE.
